Dixon Valve & Coupling makes fittings and accessories for fluid transfer and control — valves, couplings and dry-disconnects used across petroleum, chemical processing, food & beverage and fire protection.

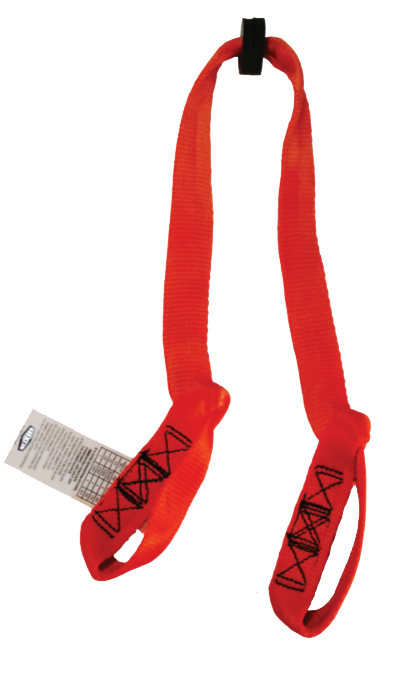

King Safety Whipsocks
Restraint that protects crew and equipment
Strong, flexible nylon webbing with rubber grommets that choke the hose eyes. Shipped with labels detailing working pressures and safety instructions. Minimises damage and injury if a hose, coupling or clamp fails.
- Superior corrosion and spark resistance over metal restraints
- Must be installed in the extended position (no slack)
- Strap: nylon · Grommets: rubber
- Maximum working temperature: 200°F (93°C)

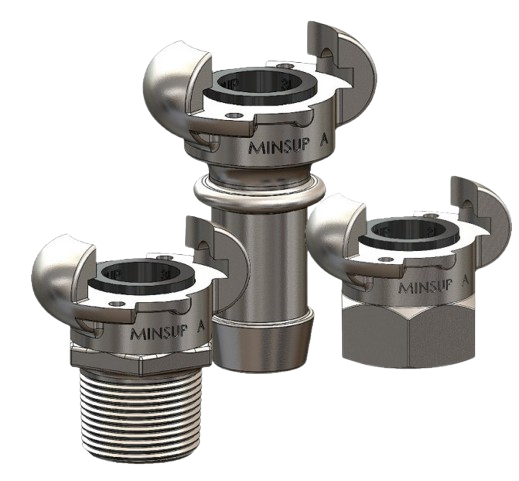

MINSUP® A-Type Claw Couplings
MINSUP® A-Type Claw Couplings
Applications
- Underground and surface mining
- Mineral processing
- Compressor and air tool industries
- Hire companies
- Water delivery
- Compressed air service
Features
- Standard coupling head ensures the interchangeability of all sizes regardless of whether the mating coupling is male, female, or hose end
- Zinc plated for corrosion resistance
- Machine seal area for leak-free operation
- Investment cast bodies ensure accurate castings for trouble-free connections
- Unique composite seal design allows minimum effort to couple with superior pressure rating
- BSP & NPT threads available
Materials
- Body: SG Iron to ISO 1083 zinc plated
- Seal: Natural rubber (standard), FKM can be purchased separately
Pressure Ratings
- Working Pressure: 500psi (3.45MPa)
- Burst Pressure: 2000psi (13.80MPa)
Standards
- ISO 1083, 1987:400 250-15 SGI
- Zinc plate to AS1789-2003 table 1Fe/Zn8 8µm minimum thickness
- BSP thread to ISO 7-1 pipe threads where pressure-tight joints are made on the threads
- NPT thread to ANSI B1.20.3 dryseal pipe threads
Pressure ratings
Whipsock working pressures by hose I.D
| Length | 1/4" | 1/2" | 3/4" | 1" | 2" | 3" | 4" | 6" | Part # |
|---|---|---|---|---|---|---|---|---|---|
| Recommended for use on the following hose inside diameters: Nylon Part # | |||||||||
| Hose maximum working pressure (PSI) for above hose I.D. | |||||||||
| 30" | 26,000 | 6,500 | 2,900 | 1,650 | 400 | — | — | — | WBN130 |
| 40" | — | — | — | 1,650 | 400 | 175 | 100 | — | WBN140 |
| 30" | 52,000 | 13,000 | 5,800 | 3,300 | 750 | — | — | — | WBN230 |
| 44" | — | — | — | 3,300 | 750 | 350 | 200 | — | WBN244 |
| 64" | — | — | — | — | 750 | 350 | 200 | 90 | WBN264 |
| 44" | — | — | — | 7,300 | 1,800 | 820 | 450 | — | WBN344 |
| 64" | — | — | — | — | 1,800 | 820 | 460 | 200 | WBN364 |
| 64" | — | — | — | — | 2,300 | 1,040 | 580 | 260 | WBN464 |
