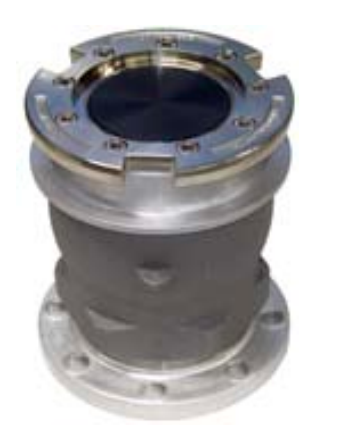

TODO-MATIC® Tank Unit 4″ (DN100, Ø 164 mm) flanged
For industrial process plant, Road and rail tankers, ISO containers, Aviation fuel bunkering, Offshore, Pharmaceutical and Petrochemical industries. Etc. Media: Butadiene, Drilling Mud, Barite, Methanol, Potable Water, Waste Water, Base Oil, Oil Based Mud.
TODO-MATIC® Tankkupplung (Vaterteilkupplung) Flansch. Für Anlagen, Tankwagen und Kesselwagen, Container, Flugzeugtreibstoff-Tankläger, Offshore, pharmazeutische und petrochemische Industrie. Medien: Butadien, Bohrschlamm, Barite, Diesel, Methanol, Schmutzwasser, ölhaltiger Schlamm.
TODO-MATIC® tankdel med fläns. För fabriker, tankbilar, tankvagnar (järnväg), container, bunkring flygbränsle, skepp, plattformar. Media: Butadien, borrslam, baryt, diesel, metanol, dricksvatten, avfallsvatten, oljebaserat slam etc.
Specifications
Dimensions & ordering data
| Dimension DN | D.Ø mm | Material Werkstoff · Material | Seal Dichtung · Tätning | Weight Gewicht · Vikt | Fig. Abb. · Bild | Code no. Bestellnummer · Beställningsnr |
|---|---|---|---|---|---|---|
| DN 20-40 (¾”-1½”) | 56 | Al | – | 0,2 kg | 1 | 4915-1400 |
| DN 20-40 (¾”-1½”) | 56 | Brass | – | 0,4 kg | 1 | 4915-2400 |
| DN 20-40 (¾”-1½”) | 56 | SS | – | 0,4 kg | 1 | 4915-4400 |
| DN 20-40 (¾”-1½”) | 56 | CR | – | 0,1 kg | 4 | 3664-10 |
| DN 20-40 (¾”-1½”) | 56 | Al | FKM | 0,4 kg | – | 5659-1407 |
| DN 40-50 (1½”-2″) | 70 | Al | FKM | 0,3 kg | 2 | 6070B-1407 |
| DN 40-50 (1½”-2″) | 70 | Brass | FKM | 0,7 kg | 2 | 6070B-2407 |
| DN 40-50 (1½”-2″) | 70 | SS | FKM | 0,6 kg | 2 | 6070B-4407 |
| DN 40-50 (1½”-2″) | 70 | CR | – | 0,15 kg | 4 | 3666-10 |
| DN 65 (2½”) | 105 | Al | FKM | 0,5 kg | 3 | 5435C-1407 |
| DN 65 (2½”) | 105 | Brass | FKM | 1,4 kg | 3 | 5435C-2407 |
| DN 65 (2½”) | 105 | SS | FKM | 1,2 kg | 3 | 5435C-4407 |
| DN 80 (3″) | 119 | Al | FKM | 0,6 kg | 3 | 5535C-1407 |
| DN 80 (3″) | 119 | Brass | FKM | 1,6 kg | 3 | 5535C-2407 |
| DN 80 (3″) | 119 | SS | FKM | 1,4 kg | 3 | 5535C-4407 |
| DN 80 (3″) | 119 | Al | FKM | 1,3 kg | 5 | 5662-1407 |
| DN 100 (4″) | 164 | Al | FKM | 1,6 kg | 2 | 5635B-1407 |
| DN 100 (4″) | 164 | Brass | FKM | 3,6 kg | 2 | 5635B-2407 |
| DN 100 (4″) | 164 | SS | FKM | 3,1 kg | 2 | 5635B-4407 |
| DN 100 (4″) | 164 | Al | FKM | 2,2 kg | 5 | 5663-1407 |
| DN 150 (6″) | 238 | Al | FKM | 3,5 kg | 6 | 7219-1407 |
